Fully Automated Dust Collection

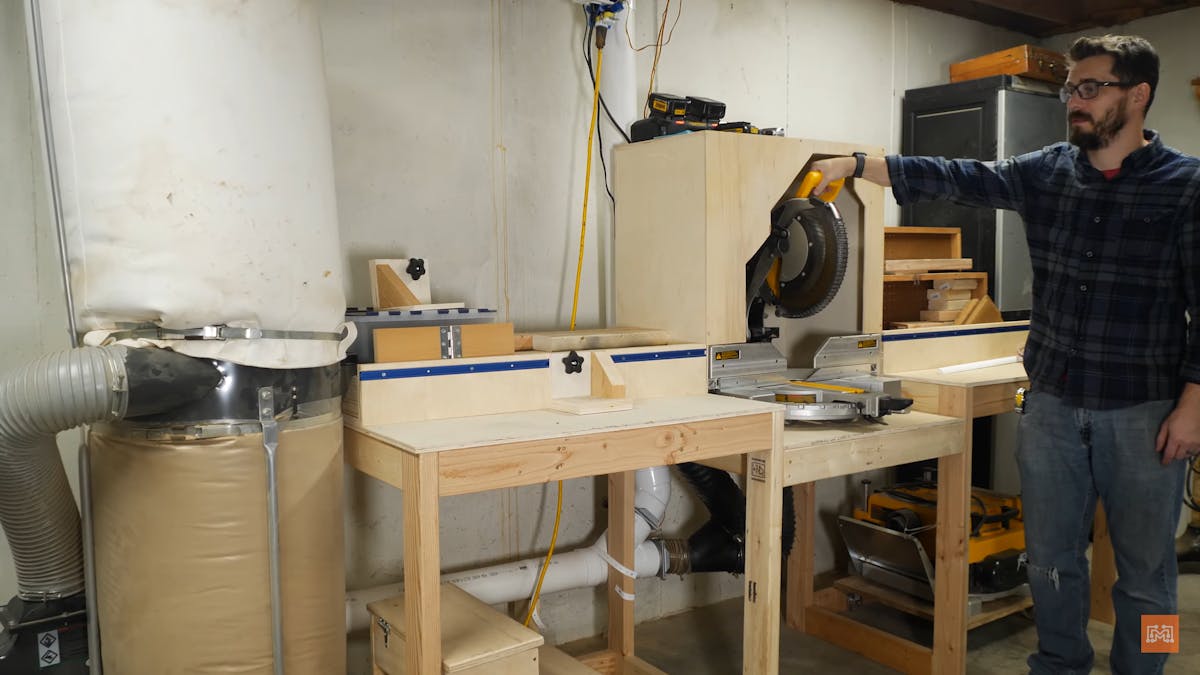

In my new shop, I did not set up any sort of my dust collection mechanism yet. With this clean canvas, I had a chance to enhance my more established computerized framework that worked off a keypad. I needed the capacity to just turn on an instrument and the dust collector would start up and all the shoot doors to close as they ought to.

In a shop with many apparatuses, there are valves that can segregate the suction to assist with further developing wind stream, the more devices you have, the more entryways you would need to shut to utilize one device. With the assistance of an Arduino miniature regulator, I was wanting to consequently control these doors and have the DC turn on and off with the instrument.

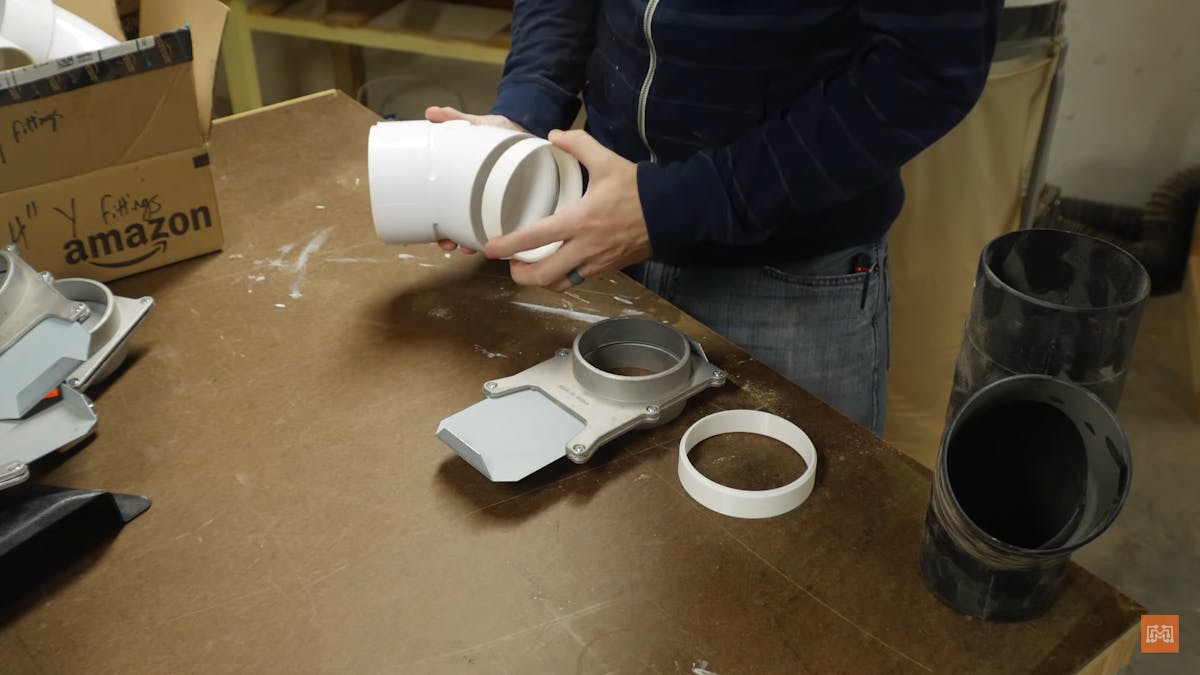

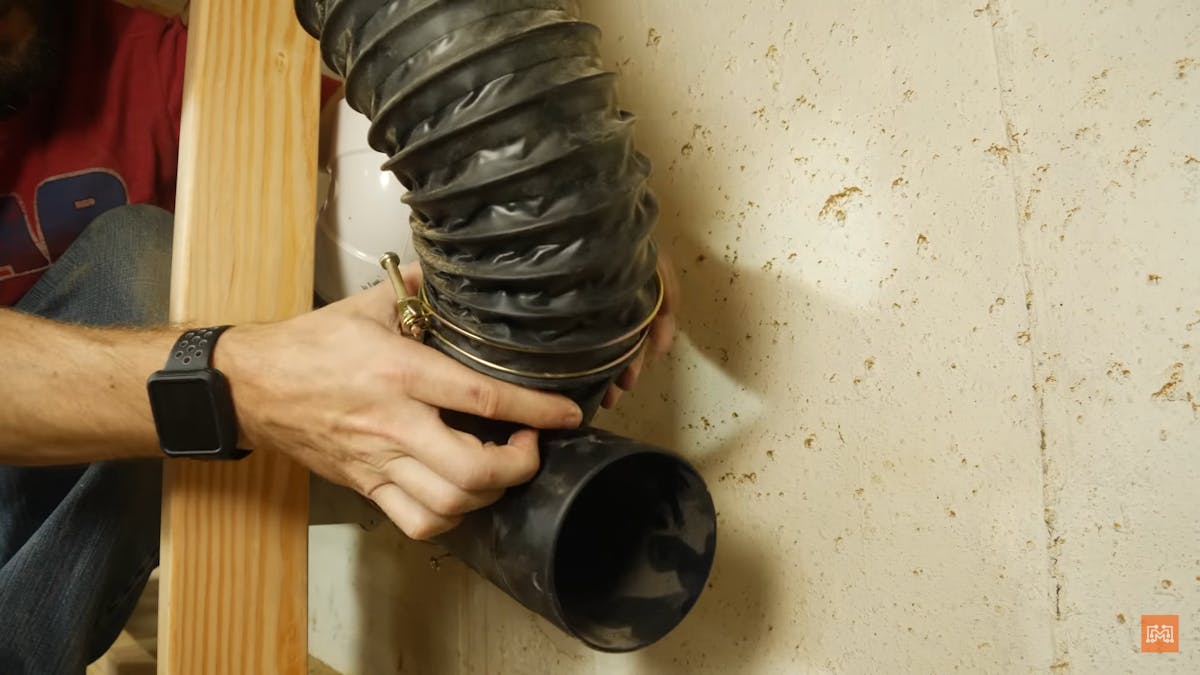

I began by spreading out the pipes that would associate the DC to each apparatus in the most productive manner. I found some drainage piping supplies at Lowe's which was a lot less expensive than conventional PVC pipe. Since the dividers of this waste line were more slender than normal PVC, the majority of the blast doors and fittings wouldn't interface. Josh planned and 3d printed a lot of connectors to interface the entire framework together

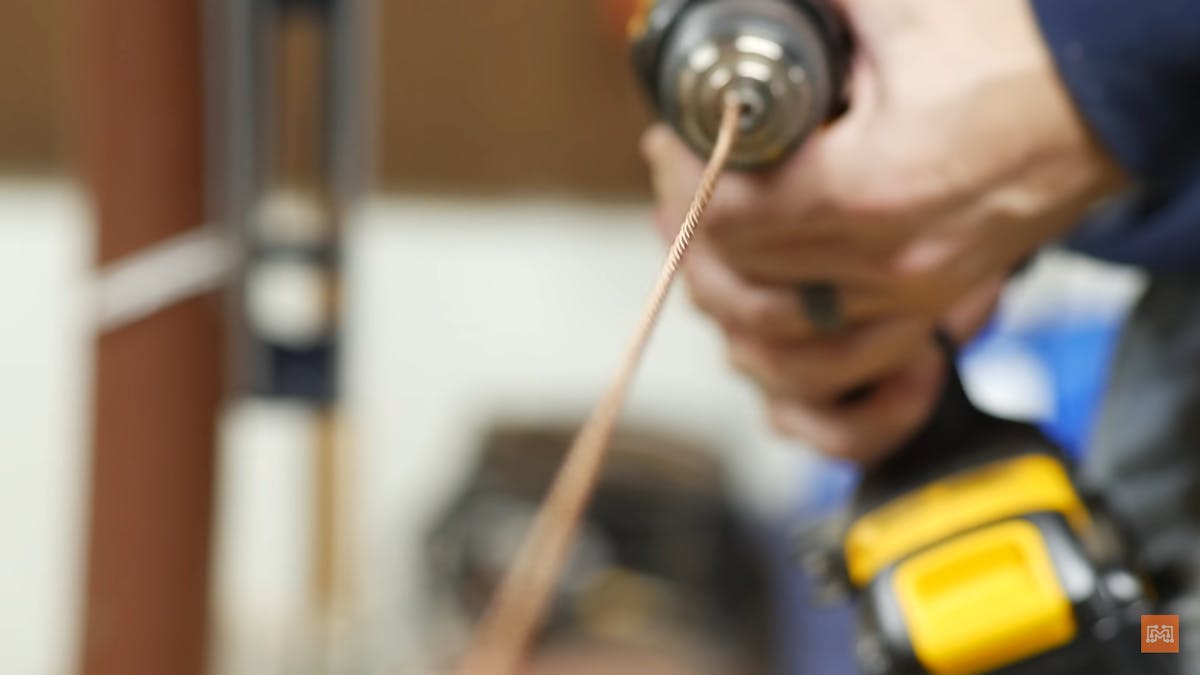

After associating every one of the instruments to the pipes and fittings, we avoided any and all risks and added a ground wire from one of the pipes to a current ground wire in the basement. This is said to forestall static development which could be hazardous in a dusty surrounding, so I added it for good measure.

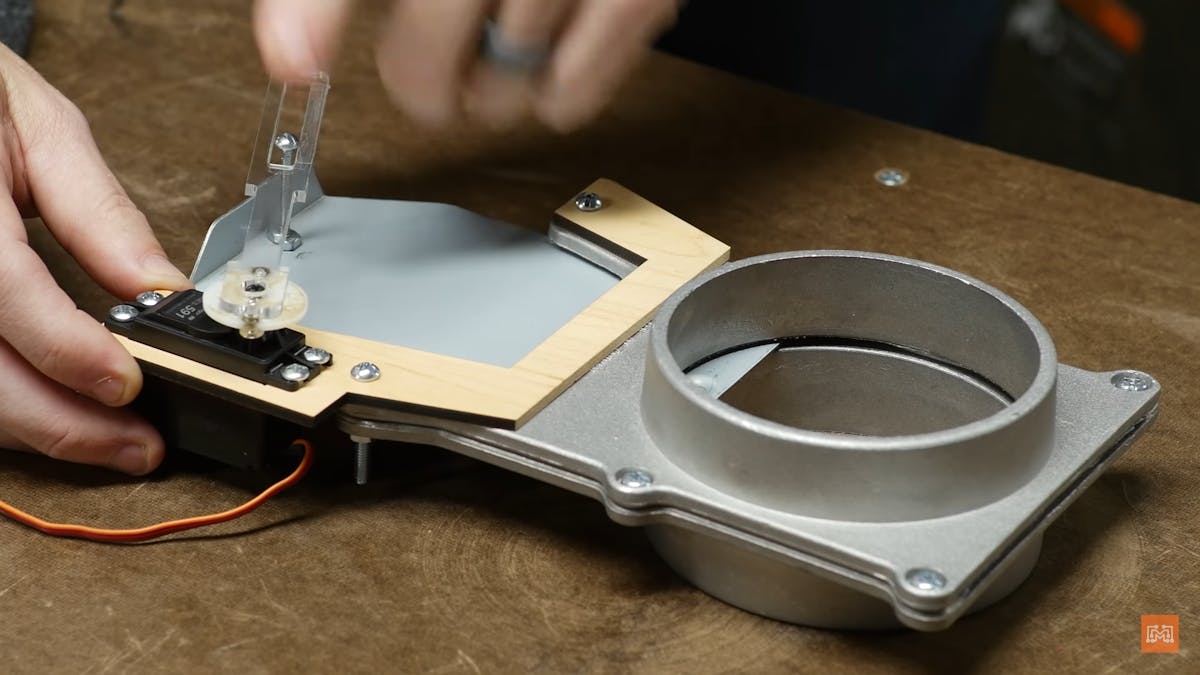

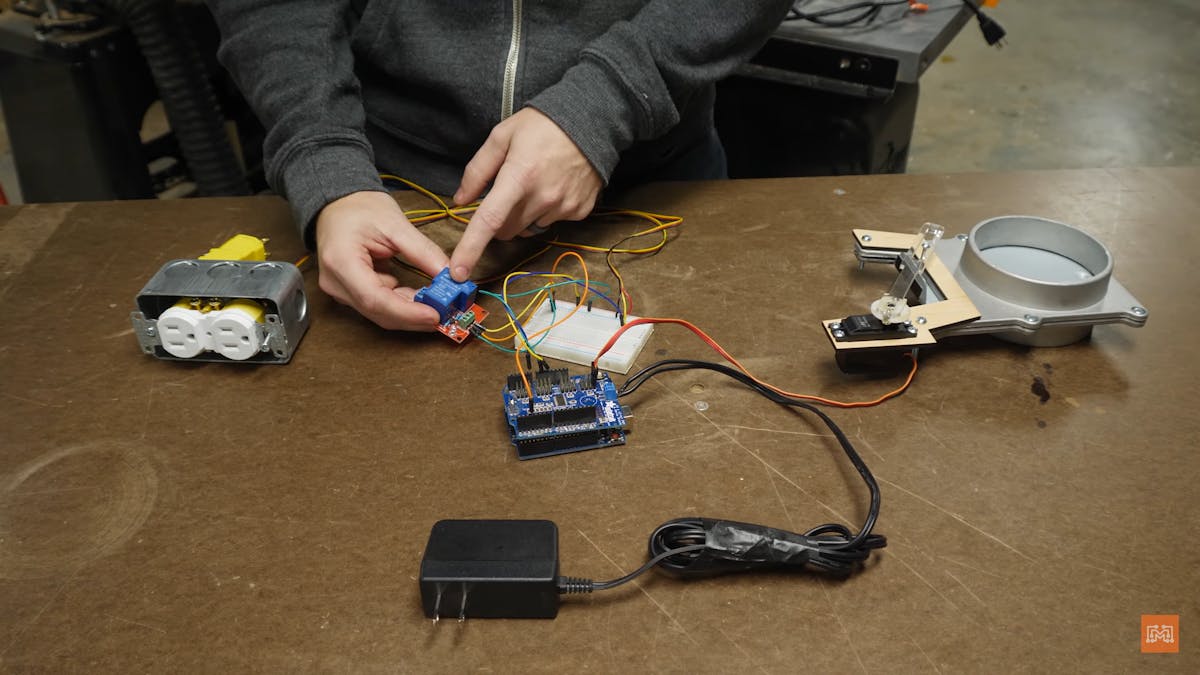

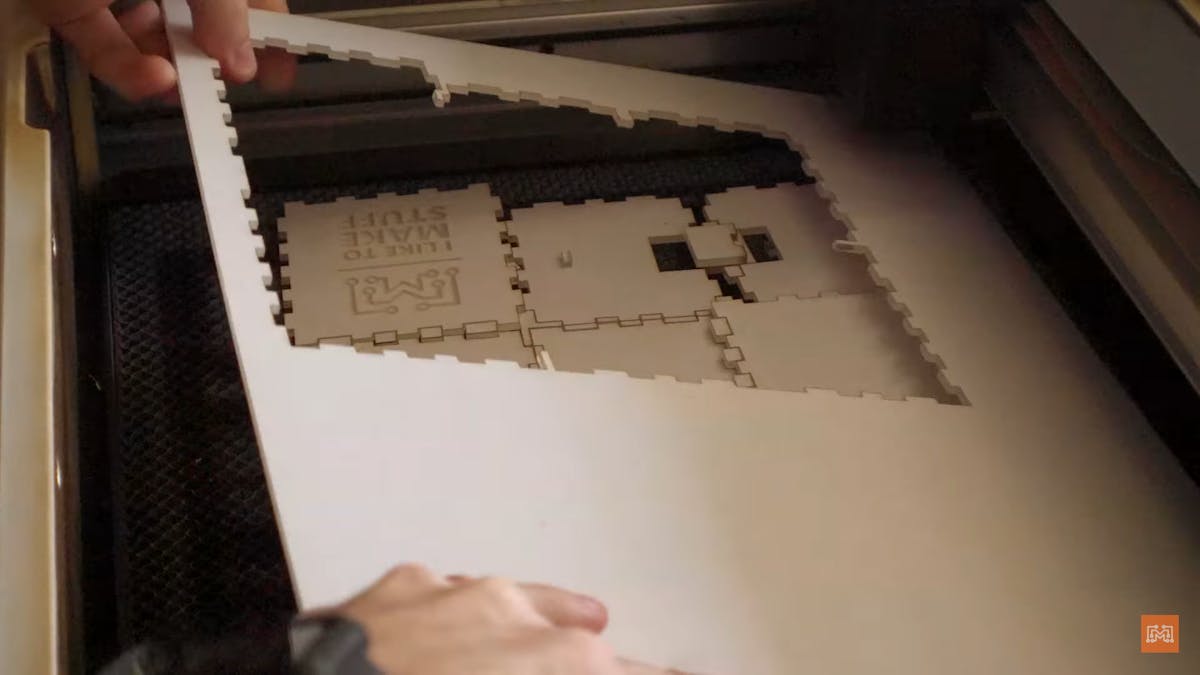

With the ducting set up, I zeroed in on the sensors that would peruse the amperage spike when each apparatus is turned on. I made lodging that the apparatuses would plug into to get control and furthermore interface with the voltage indicator that associates with the Arduino. When you turn on a device, an amperage spike is distinguished and an information signal advises the Arduino to carry the fitting impact doors and to trip the hand-off that controls the DC. The impact entryways are constrained by a servo mounted on a section that swings an arm associated with the door. At the point when the servo moves, the arm pushes or pulls the door open or shut.

There are a ton of parts to this framework so dealing with each of the wires, fittings, connectors, and servos was vital. Each of the connectors was stuck and ensured with heat recoil, each one of the wire was packaged and named, and the servos were focused to ensure the doors weren't hitting any hard stops.

The framework works incredibly with the exception of one part that continued to give us inconvenience. The 15-amp hand-off that was controlling the dust collector would come up as a failure following a couple of days. After some exploration, I found that they were a piece underpowered for the 2 drive DC. And so I have ordered a beefier relay and soon will get it all set up and working. Assuming you need the Arduino code I made for this venture; the link is provided in the video description.

I hope this project motivates you to smooth out your work process and find ways of further developing proficiency in your shop or home.

This venture is our endeavour to move and enable others to make the stuff that they need to have. Ideally, you'll see something here that will move you to make something that you're enthusiastic about!
