Making Custom Silicone Mats

Post text...With the entirety of the model making and gadgets dabbling I've been doing of late, I needed a custom silicone mat that could hold explicit things. Silicone mats are really strong, heat-safe, and simple to clean. Have an ever undertaken a task that you have to do over and over again? Allow me to guide you on the best way to make a custom silicone mat!

The beauty in making your silicone work mat as opposed to getting one is that you get to plan to your particular necessities. Working with little things can be disruptive and disorganized if the pieces are not put away well and your tool is easily retrievable. The silicone mat is magnificent because it can assist with getting sorted out your work area while being heat safe, tearproof, and simple to clean. Assignments like model making or hardware work can be more coordinated and effective if the work surface was made to accommodate the interest or hobby. For my situation, I anticipate utilizing this mat for both of those assignments.

I chose to organize the mat with shallow pockets encompassing a focal work area. Since we'll be emptying the silicone into a form, so all of our plan components must be organized backwards so the mat will come out accurately.

The pockets will be made using positive squares and any lettering or text will be engraved backward. I made use of some piece 1/4" MDF to go about as the shape structures for the pockets. Adding a few chamfers to the base edges of the square will get two things done. It will go about as a draft, permitting the silicone to release more easily and it will hold the mat's pockets back from having sharp corners that are difficult to clean.

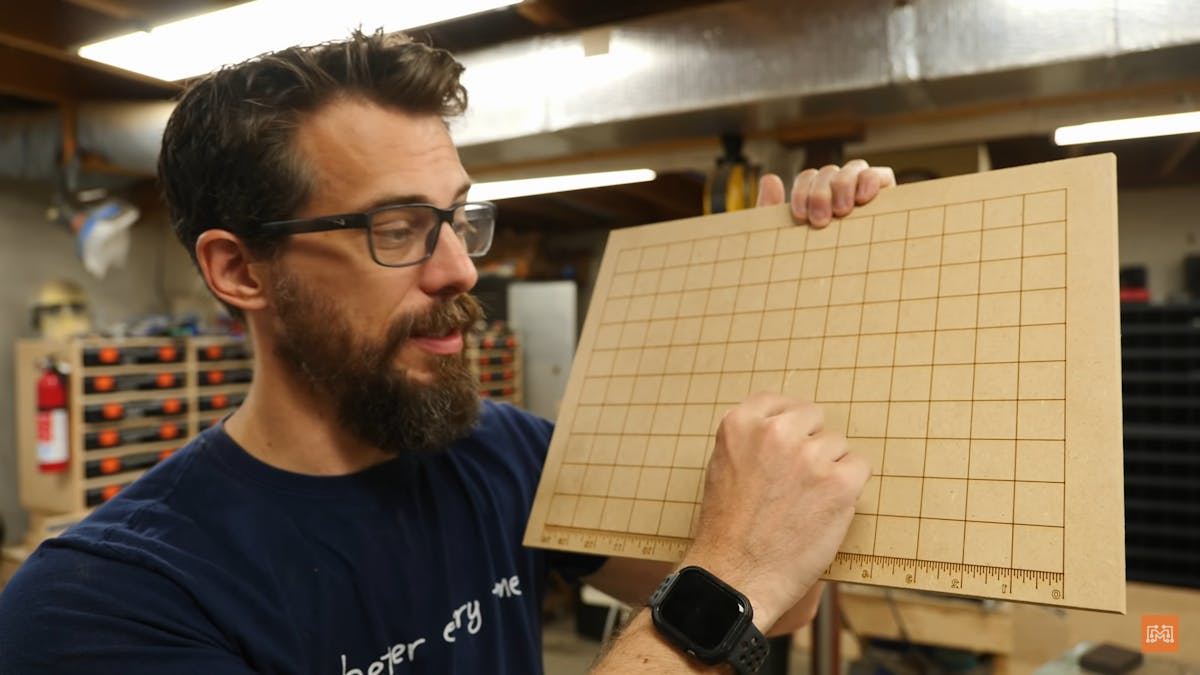

I needed the open workspace to have a slight texture and a cool component. Utilizing my Glowforge laser shaper, I added a basic square framework design and a reference ruler to the base. One of the bigger pockets would likewise look cool with a plan, so I scored a cool circuit design onto the mould block.

To add a few notches to the space intended to store brushes, I cut some shallow lines into more shape blocks. Since I had the mat's fundamental components planned and made, the time had come to make mould blocks.

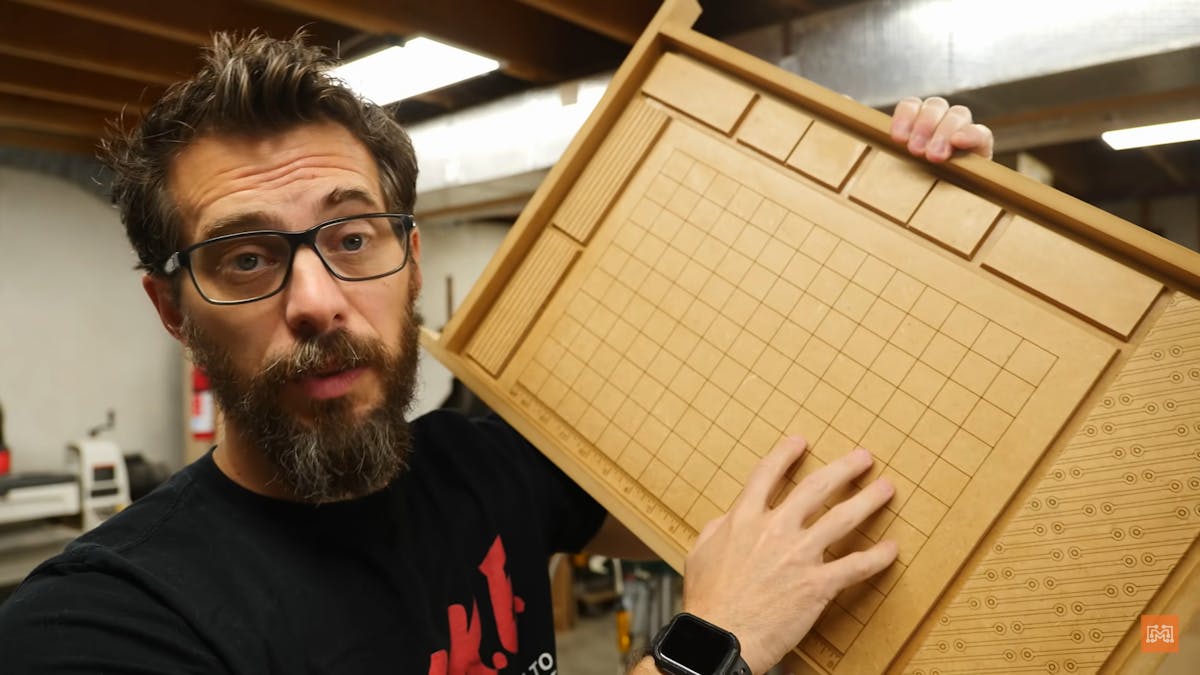

The mould should be a shallow box that contains all of our hindering components, fixed to forestall spillage. I organized the pocket blocks around the focal work board with the laser carving. Making a point to space these components 1/4" separated, I stuck them all to the lower part of the form and fixed them around their edges.

Now, I needed to inspect the form intently for any imperfections, unpleasant regions, or trash. Silicone will get the surface of your form strikingly well, so you need to ensure each component is sanded smooth and fixed with a stain. When I was content with the shape and guaranteed that everything was fixed from leakage, I added some Mold Release splash to help the form, well...release from the silicone.

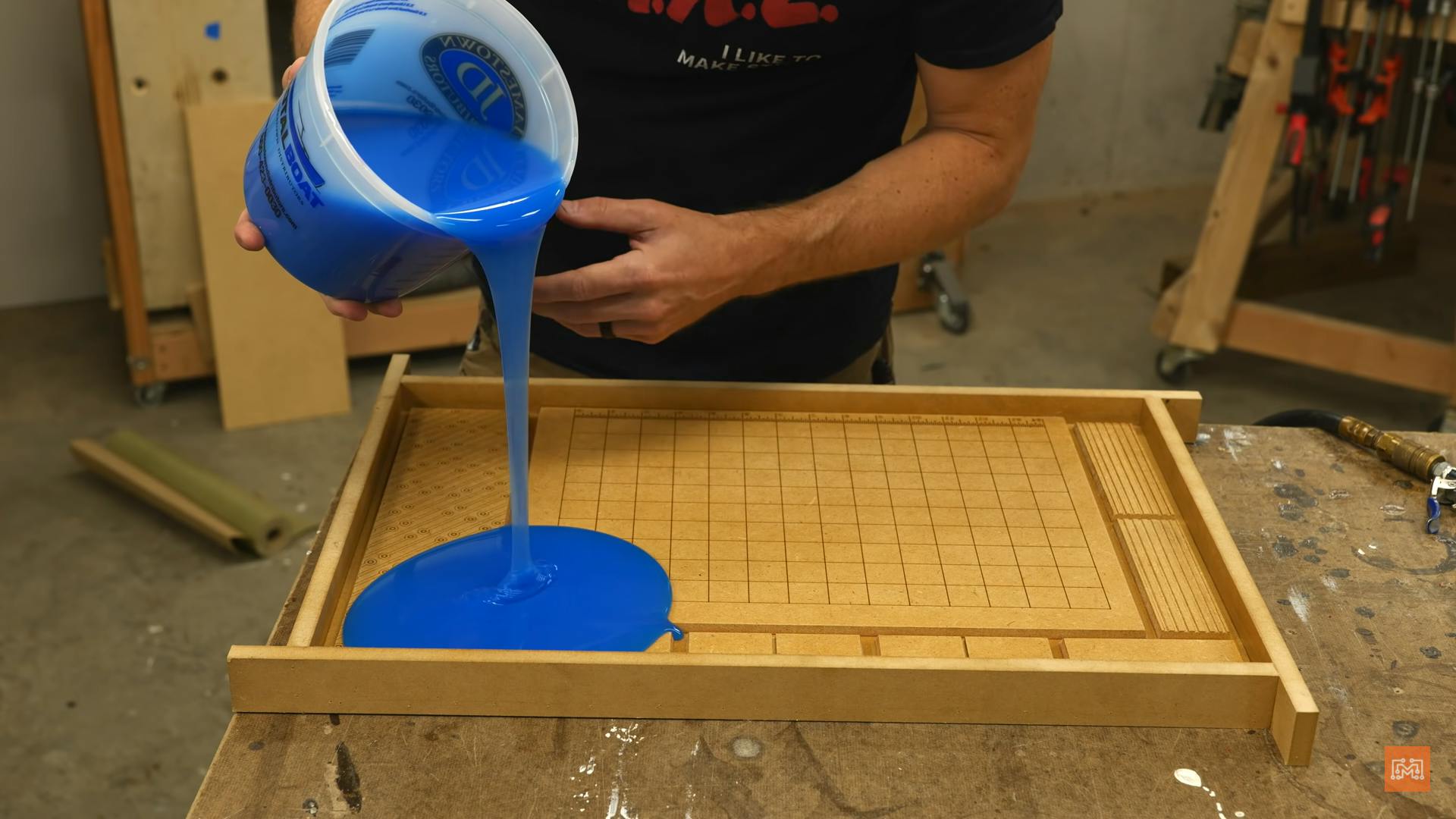

Silicone is an amazing substance. Nothing sticks to it except for more silicone, it opposes high temperatures, it's rubbery and sturdy, and you can without much of a stretch clean it. This makes it an ideal possibility for a model making surface covered with paste and paint. There are many sorts of silicone to browse. I, for one, as to utilize Smooth-On since they are reliably acceptable (whenever bought from them or an approved affiliate) and their site has a ton of data to assist you with picking accurately. In any case, truth be told, it takes a few active experimentations to guarantee you get the right outcome.

I started this task utilizing the Ecoflex 00-30 silicone from Smooth-On. While this 2-section item has a nice working time, permitting me to off-gas the combination in a vacuum chamber, the final result was correct. It was extremely stretchy for this application even though it blended and poured perfectly.

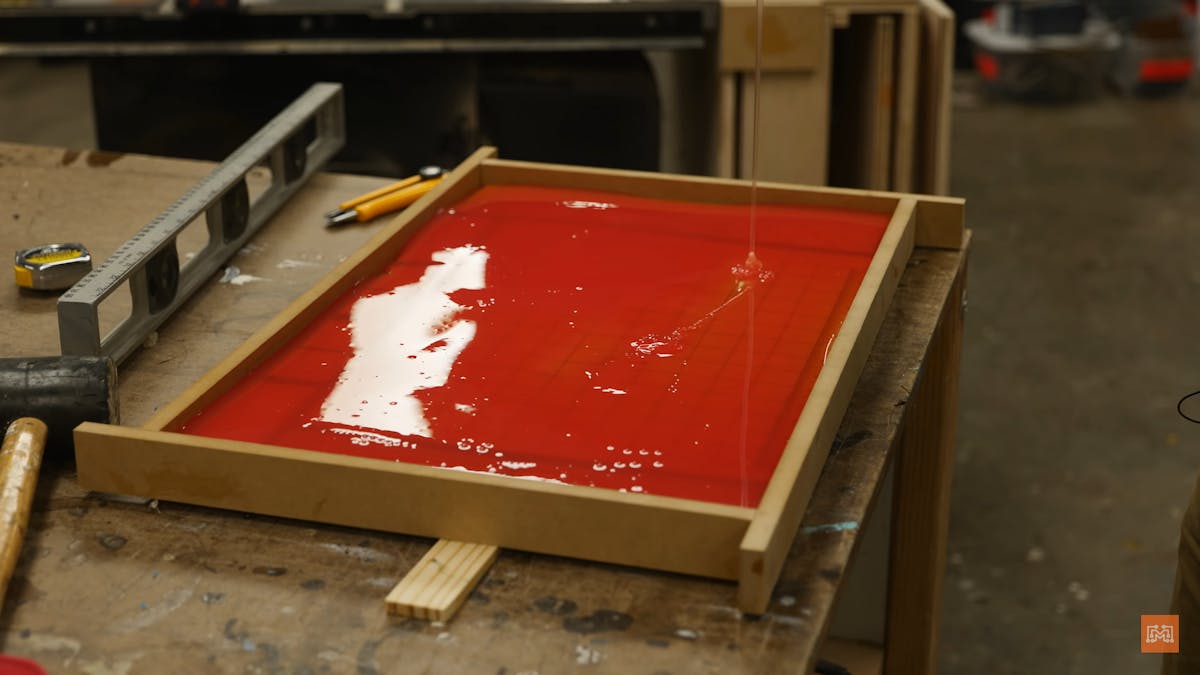

Previously, I've used Moldstar 20t structure Smooth-On for silicone moulds, so I chose to give it a shot on the mats. The functioning time for this blend isn't adequately long to off-gas in the vacuum chamber so I needed to blend it, colour it orange, and pour it in the form. The Goldstar 20t solidified before long and I eliminated the mat from the shape effortlessly. It looked stunning!

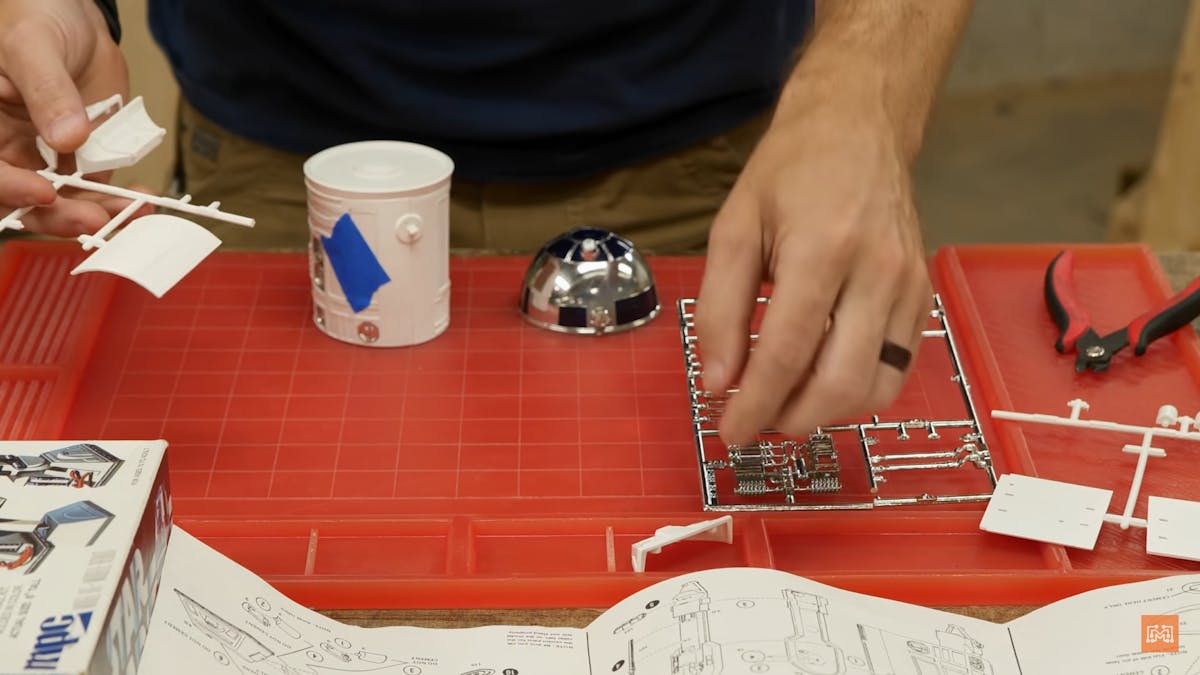

You can utilize these strategies to make a custom silicone mat custom-made to any specific requirement or job.
