How to make a DIY Ventilated Paint Booth

Since my new shop is in the storm cellar of my home, my family not only gets disturbed by the noise of my work, they can likewise smell my paint from underneath the flooring planks.

In a past project, I made a little folding paint corner. In spite of the fact that it is great that it collapsed up for helpful capacity, its compact size was truly restricting. Since I have more space in the shop, I am fit for building greater tasks and assuming I needed to paint those bigger activities I would need to go outdoors and this will not only mess up my driveway but also has a chance to wreck my project.

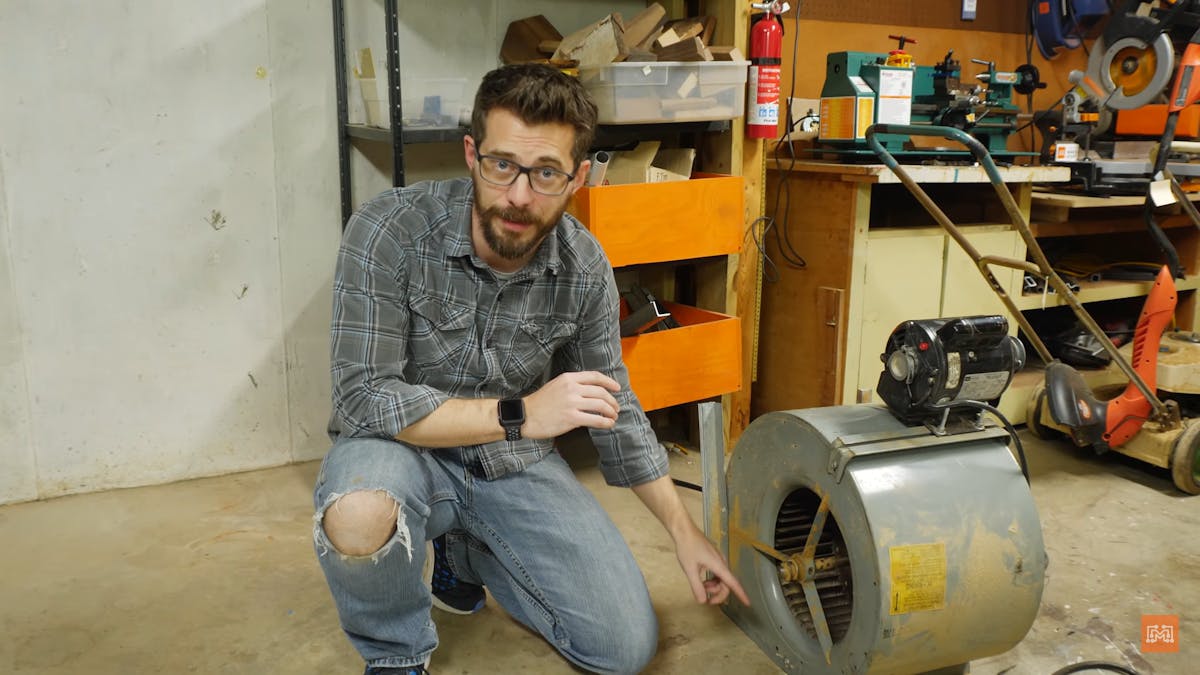

Arranging and planning the booth’s development and its construction was not as difficult; simply assemble a box with certain collapsible or folding entryways. Yet, all those paint vapours and fumes would collect in the cellar and penetrate higher up which would be awful and also was not safe at all, so the main goal was that these vapours must be vented outside. My sibling had an extra heater blower (furnace blower) that he gave for this task, and note that the blower's engine was not inside the impeller lodging like numerous other heater blowers. If the engine was inside the lodging, the combustible fumes from the paint would go over the engine's brushes and could make a blast peril, however our blower is belt driven and totally isolated from any exhaust.

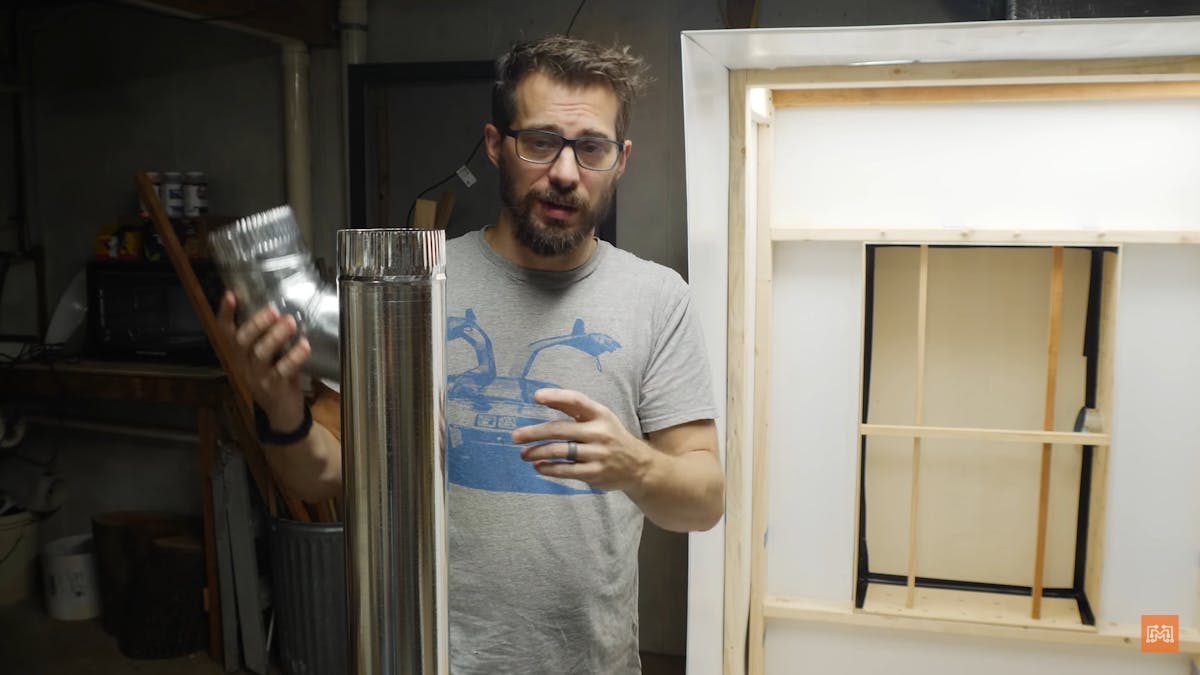

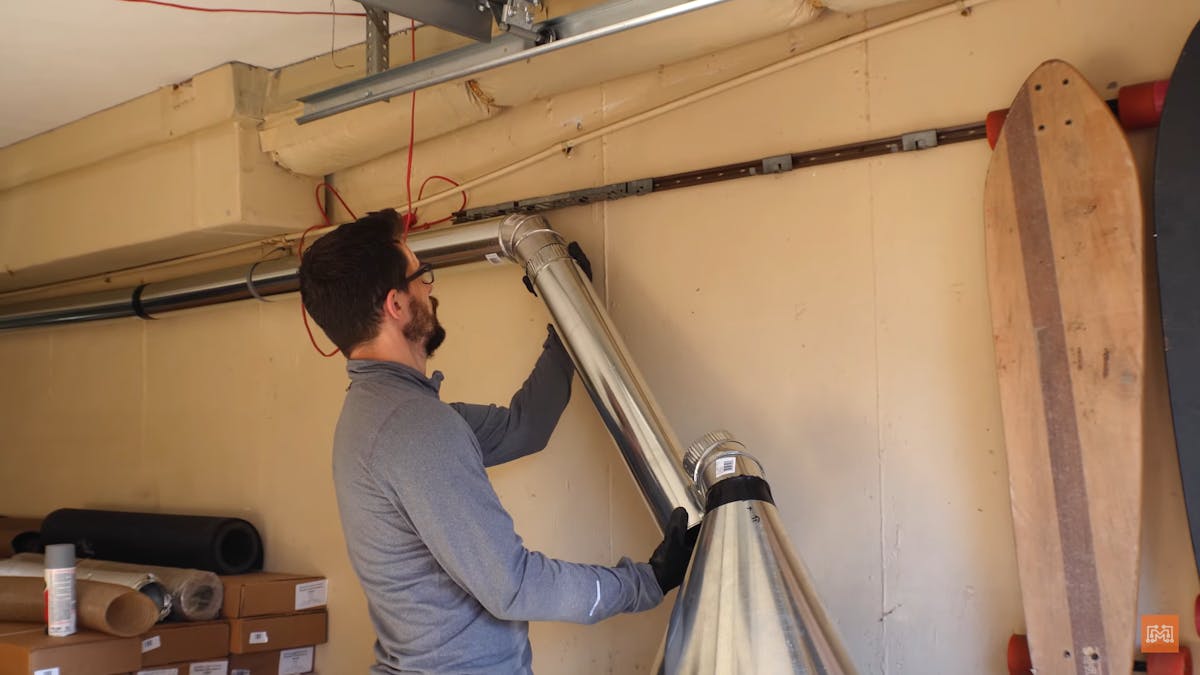

Subsequent to building the paint stall lodging from 2x4s and sheets of white chloroplast, I started dealing with the ducting to vent the fumes. I ran 4-inch metal ducting (which we later changed to 6 inches, WAY better!) and made a custom hood to associate the lines to the heater blower. To vent the exhaust outside without opening the carport entryway without fail, I penetrated an enormous opening in my home's block outside. Fortunately, I penetrated the opening right on the main attempt and I introduced a dryer exhaust port to finish the framework.

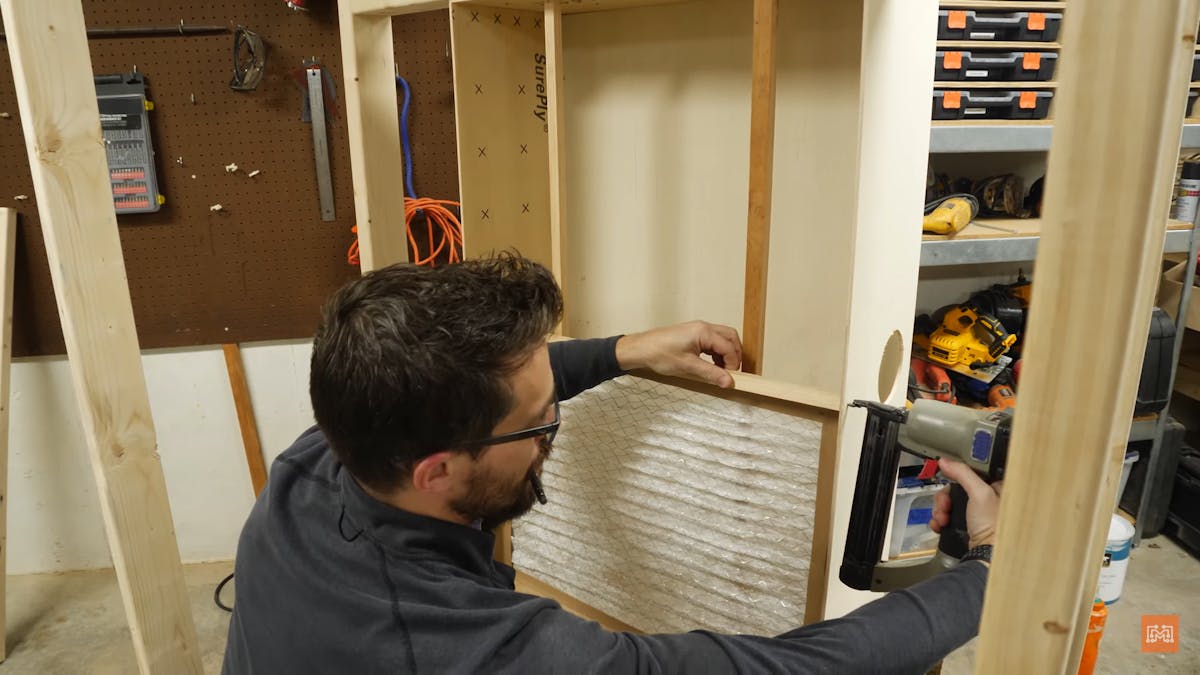

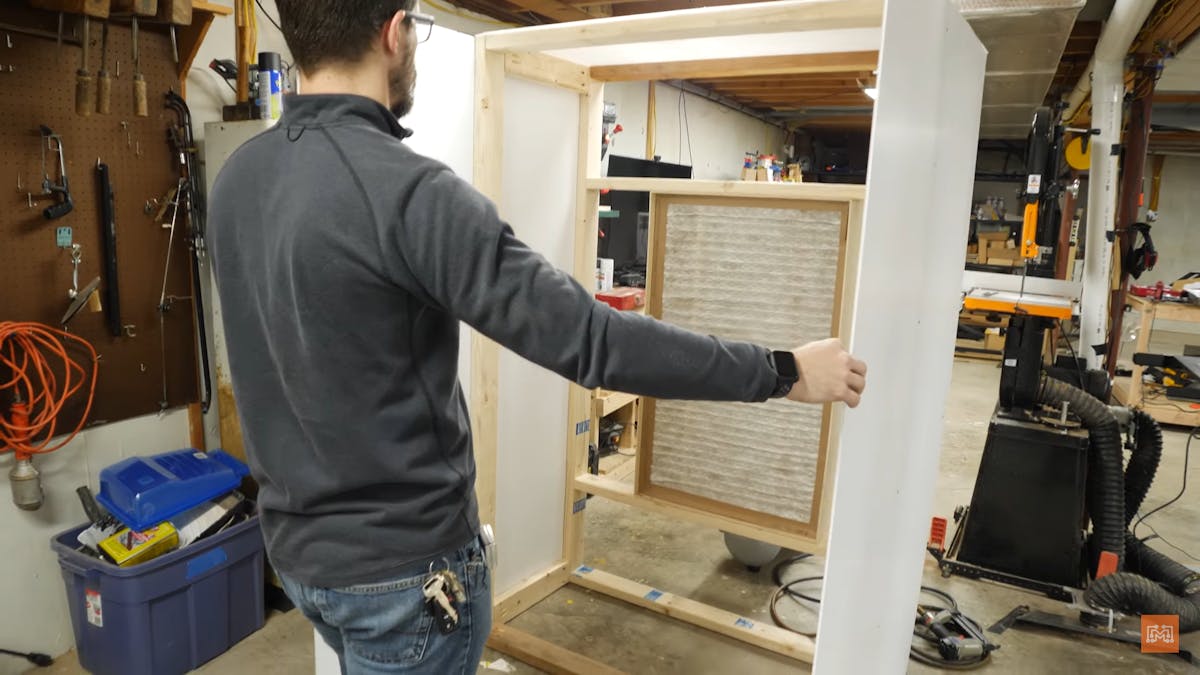

I assembled a box that would associate the ducting to the stall and it would likewise hold some air channels. Subsequent to exploring fitting channels, I tracked down that many paint stalls have perplexes that permit air to go through however get most of the showered paint. I utilized Glow forge’s new pass-through way to laser cut out a plan on the tall compressed wood sheets. The plan would be cut on two sheets of slender compressed wood, however, they would be balanced from one another so that paint wouldn't shoot directly through.

I chose to plumb in an association with the Glow forge’s exhaust just as put a suction port in the metal-working region to vent dreadful welding vapor. Other than being able to paint huge projects, I am currently ready to vent all hurtful fumes outside, away from my lungs and away from my family hanging out higher up. This shop project began as a basic form and wound-up connecting significant workspaces in the shop and should guard us for future undertakings.
